Total SDI Inputs
5
-

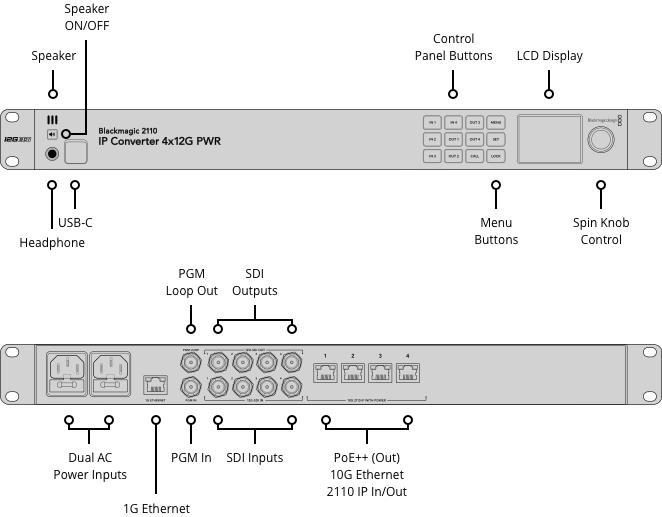

Blackmagic 2110 IP Converter – 4×12G PWR
$2,875.00
?Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections which can also provide power. Its 1RU design includes a control panel with LCD and supports HD and Ultra HD standards up to 2160p60.
Connections
SDI Video Inputs
4
SDI Main Program Inputs
1
Total SDI Outputs
5
SDI Video Outputs
4
SDI Main Program Outputs
1 Loop Out.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
SMPTE ST-2110 IP Video Inputs
4 x 10G Ethernet
SMPTE ST-2110 IP Video Outputs
4 x 10G Ethernet
Analog Audio Outputs
1 x 6.35 mm headphone socket.
SDI Audio Inputs
16 Ch embedded audio on SDI input.
SDI Audio Outputs
16 Ch embedded audio on SDI loop output.
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
SMPTE ST 2110 IP Audio Outputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi Rate Support
Auto detection of SD, HD, Ultra HD and 4K.
Reclocking
Yes
Ethernet
4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters.
1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates.
Computer Interface
1 x USB-C 3.0 for configuration and firmware updates.
