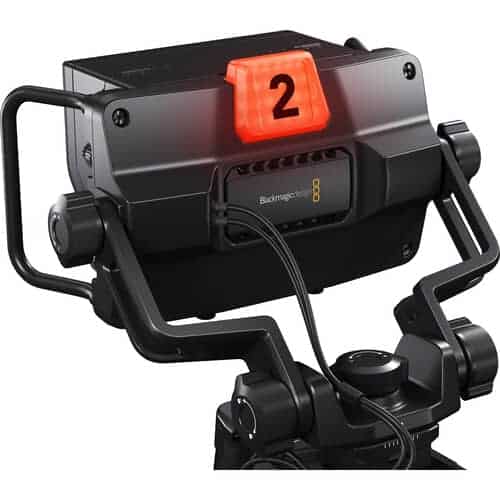

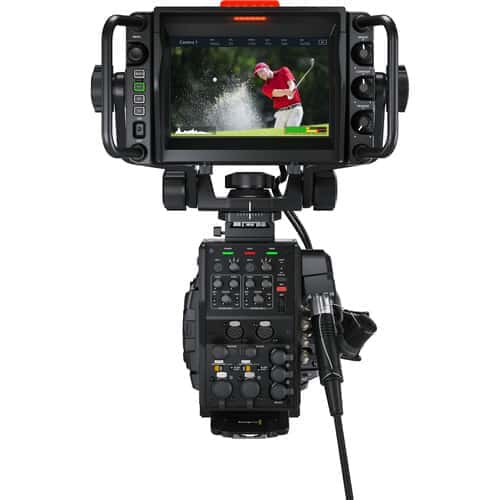

Add the Blackmagic Design 7″ URSA Studio Viewfinder G2 to your URSA Studio G2 or URSA Mini camera to provide high-resolution monitoring. The 7″ viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD screen, and it features a detachable sun hood to prevent glare. Large side handles allow you to adjust the angle, and it mounts onto the top of your URSA Mini top handle using the bottom V-lock mount.
The viewfinder connects to the camera using a 3G-SDI BNC input, and it features 2000 cd/m² brightness, allowing you to view images clearly indoors or outdoors. Multiple dials and knobs allow you to navigate and adjust settings, and an LED light provides tally information. Its status display provides metadata from the camera, including frame guides, status, and peaking, and it also shows the fps, battery level, shutter, gain, and more. It is powered using the 4-pin XLR power input that can be used right from your URSA camera power output. It also features a USB Type-C input for setup and firmware updates.
Key Features
- Designed for URSA G2/URSA Mini Cameras
- 7″ 1920 x 1200 TFT LCD Screen
- 3G-SDI Connector to Camera
- 2000 cd/m² Brightness
- 4-Pin XLR Power, V-Lock Mount
- Rotary Dials, Customizable Buttons
- Detachable Sun Hood
In the Box
- Blackmagic Design 7″ URSA Studio Viewfinder G2
- Sun Hood
