Teranex Mini – SDI to DisplayPort 8K HDR



Blackmagic Design Teranex Mini Overview

The Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design provides an advanced 8K monitoring solution. Its DisplayPort outputs enable you use pro monitors like the Apple Pro Display XDR as part of your on-set or post-production monitor setup. The four 12G-SDI inputs support 4K signals independently or an 8K input signal together, either DCI 8K or 8K video split into four UHD signals. It can use third-party calibration probes such as the SpectraCal C6, X-Rite i1 Display Pro, or the Klein K10-A probe to accurately align connected displays for precise color. The built-in, color LCD screen displays not only the video image, but it can also display two on-screen scopes selected from WFM, Parade, Vector, and Histogram options.

Key Features

  • Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
  • Accepts Third-Party Calibration Probes

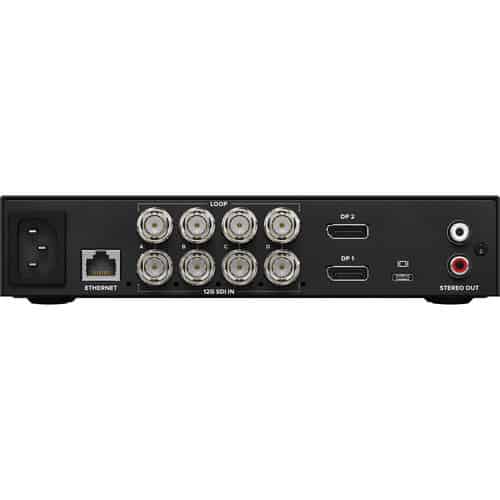

  • 12G-SDI I/O / DisplayPort/USB-C D.P. Out
  • 2 x Selectable, On-Screen Scopes
  • Auto-Convert 2SI and Square Division
  • Supports HDR Workflows
  • Supports 33-Point 3D LUTs
  • Front-Panel Interface, Audio Meters
  • Rack-Mountable with Separate Kit

In the Box

  • Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
  • 4 x Rubber Foot
